Greenhouse Sensors and Equipment

Greenhouse Automation for Flower Growers

Climate Control Systems Inc provides sensors and equipment dedicated to a growers needs amnd greenhouse supplies for commercial greenhouses and hobby greenhouses, hydroponic systems, NFT Channel Systems and other field test equipment.

Our Equipment

Vent Motors, Shade Motors, & Control Panels

Several vent motor-gear boxes and Shade Motor Gearboxes are available for venting, shading and side vents for glass and poly houses. Motors are available for 120 volts, 220 volts, 208 volt 3 phase and 575 volts 3 phase. The motor control Panels are available to control two vent or shade motors per panel and can accommodate single phase or three phase motors. The control panels are also available to control one motor per panel. Each panel is equipped with 24 volt relays to control the high voltage interlocked contractors.

Vent motors

Temperature & Humidity Sensors – Hot Water Sensors – CO2 Meters

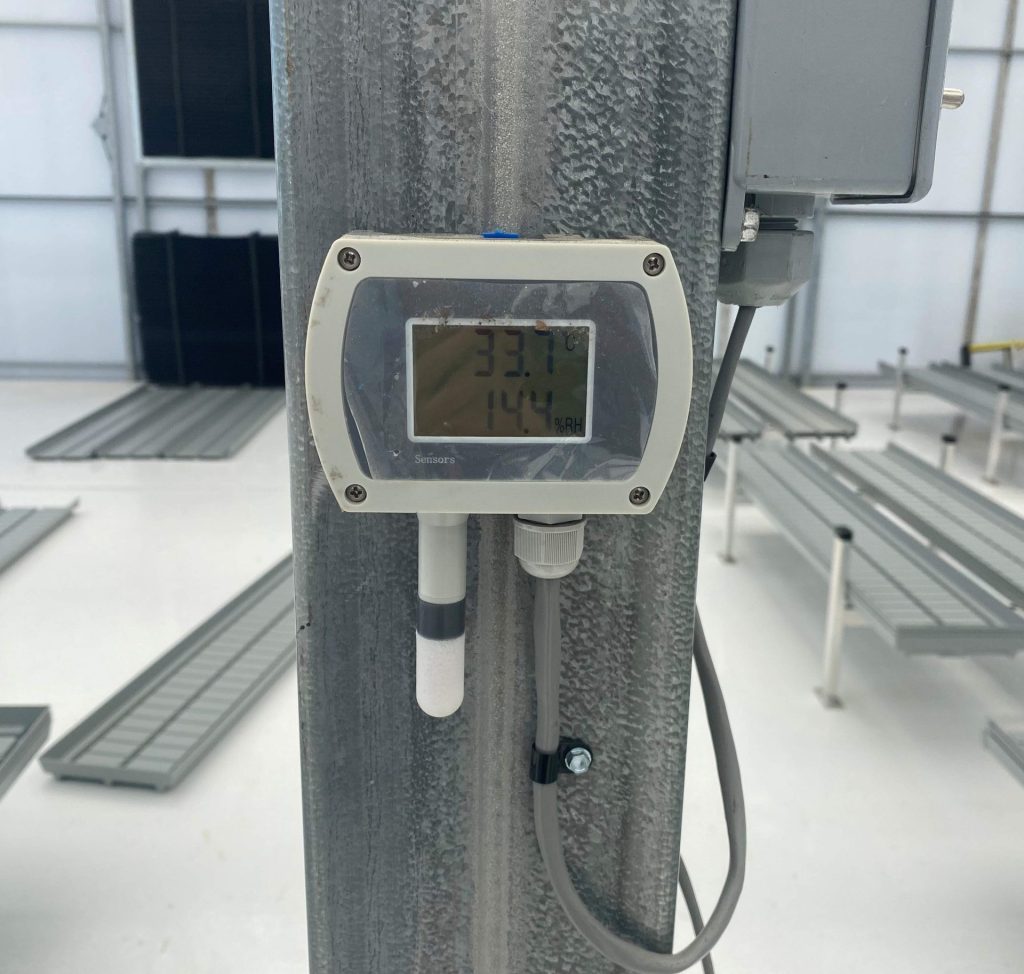

Greenhouse temperature and humidity sensors

Aspirated temperature and humidity sensors and temperature only sensors are available with weather proof connectors. Solid state temperature and humidity sensors are high accuracy and maintenance free. These sensors work with the Climate Manager™ software program. The hot water temperature sensor is a stainless steel probe with 3/4″ NPT thread with a weather proof cap. Terminals are provided on top of the sensor to connect wiring to the Climate Manager control panel. There are several CO2 meter-controller available for controlling the CO2 levels in the greenhouse. The stand alone meters can be installed directly in the greenhouse to control CO2 gas burners or liquid CO2 valves. A second model is available for remote sensing of CO2 in different greenhouse compartments. Both meters have analogue outputs to connect to the CO2 program in the Climate Manager computer.

Panel mount E.C. Meters – Water Meters – Ph Meters & Controllers

The digital Conductivity (EC) meter-controller provides programmable relays to pulse electronic and pneumatic injectors proportionally according to EC set points. There are optional relays to allow you to program Hi-Low levels for alarms or proportional control relay outputs. They also have built in transistor output for connecting to the Fertigation Manager computer program. The meters are easily programmable through front panel keypad. The water meter-controller provides programmable relays to pulse electronic and pneumatic fertilizer injectors proportionally to water flow. There are 2 optional relays to allow you to program Hi-Low level flow alarms and on-off control or proportional control outputs. They also have built in transistor output for connecting to the Fertigation Manager program. The meters are easily programmable through front panel keypad. The digital pH meter-controller can be programmed for pH, ORP, Dissolved Oxygen, or Moisture meter. There are optional relays to allow you to program Hi-Low levels for alarms or for proportional control. They also have built in transistor output for connecting to the Fertigation Manager computer program. The meters are easily programmable through front panel keypad.

PH meters

Conductivity – Level – Pressure – Temperature – pH/ORP – Oxygen – Turbidty – Meters & Controllers

Conductivity Meter

These digital meters provide programmable relays to control equipment as required. They can easily control pumps, injectors, alarms, and other equipment. The digital display readout always shows you what is going on in the processes. The built in relays allow you to program Hi-Low alarms or control equipment. They all have 4~20 mA outputs for connecting to the Fertigation Manager program or any PLC. The meters are easily programmable through front panel keypad.

Computer Automation

Using the most reliable hardware and software platform we offer many software programs for commercial Greenhouse Hydroponic Crops, Building Automation, and Energy Management.

Climate Manger screen on tablet
